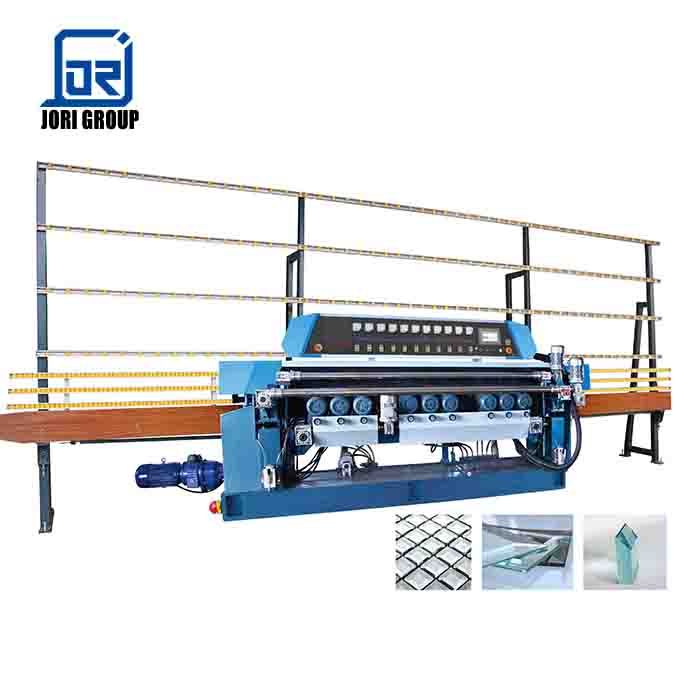

Mini Glass Beveling Machine For Flat Glass JZXM361SJ

This is 10 motors glass lifting beveling machine, the max bevel angle is 45°, it suitable for grinding the beveling and bottom, it also can complete rough grinding, fine grinding, polishing and bottom grinding in one time, the polished effect is similar to a mirror surface; It used full-electrical system to control; and also it uses directly type grinding motor, structure is compact, low noise; less failure; motor control is used twin-screw to pendulum angle; digital show the glass processing thickness, speed and angle; also have front beam lifting function; structure advanced, high accuracy, easy operation; big processing range and so on advantage; it is suitable for processing max bevel width, small piece glass bevel with,3-45°multilevel of special machines for a variety of functions, really achieve a variety of usage in one machine.

Processing speed0.8-6.0 m/min
Min. glass size20*20 mm
Glass thickness3-25mm
Spindles10 spindles
SystemSemi-automatic
ApplicationArchitectures Furniture Household Appliance
Dimension7000*1300*2500mm
Product KeywordsEasy operation mini glass beveling machine for flat glass
