Specification:

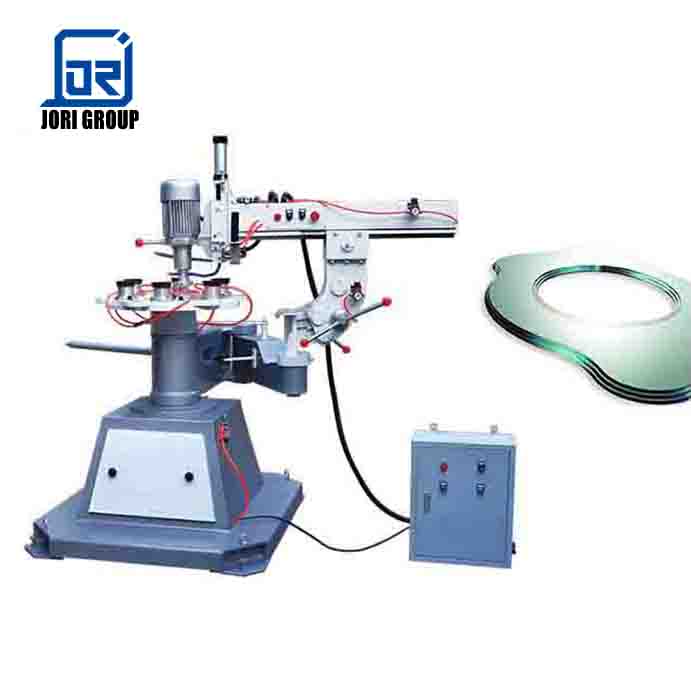

◆ZNWM1320 machine is a new model to improve on the basis of the ZDYM1320,which all possess the function of type ZDYM1320,but also can grind inner circle, ellipse and various special-shaped inner circle.
◆Using vacuum pump to the glass adsorption on the suction cup, with motor drive satellite rotary plate, rotating speed can be arbitrary regulation during work;
◆Install three coarse grinding, fine grinding and polishing. Grinding hypotenuse, bowl shaped grinding wheel is installed, the grinding head tilted back, adjusting the slope angle, to face grinding.
| Processing speed | 1.2-6r/min |
|---|---|
| Min. glass size | 100 mm |
| Glass thickness | 3-30mm |
| System | Semi-automatic |
| Application | Architectures Furniture Household Appliance |
| Dimension | 1500*1500*1700mm |
| Product Keywords | JZNWM1350 Inner And Outer Shape Grinding Machine |
