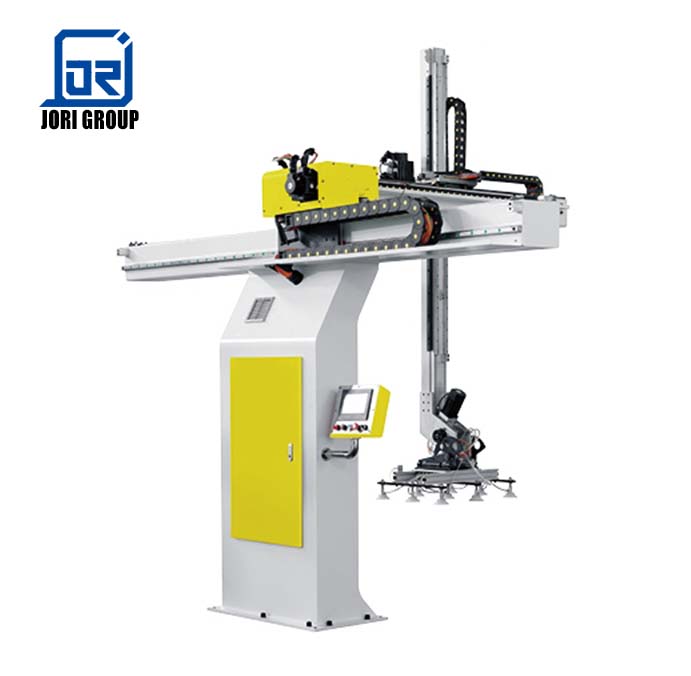

Designed for loading/unloading big size glass such as furniture, door, window, architectural glass. Max size up to 2440x3660mm, max lifting weight up to 250kg. It is able to replace low efficiency manual operation and lower the safety accident rate.
Auto-production line solution will be provided according to site requirements, ensure the maximum satisfaction of different technological requirement to realize intelligent production.
Quality Assurance
1. CN, CE or UL Standard.
2. The warranty is valid within one year from installation.
3. The spare parts due to quality or design problem, we will change it free of charge or in case of necessary, we will send our technician/engineer to the buyer factory for repairing it and related labor cost, we will cover it.
| Max loading | 250 kg | |
|---|---|---|
| Max size | 2440x3660 mm | |
| Position accuracy | ± 0.01mm | |
| R axis | Top speed | 20o/s |
| Rotate | Max range | 100o |
| Y axis | Top speed | 500 mm/s |
| Front and back | Max range | 2500 mm |
| Z axis | Top speed | 150 mm/s |
| Up and down | Max range | 1500 mm |
