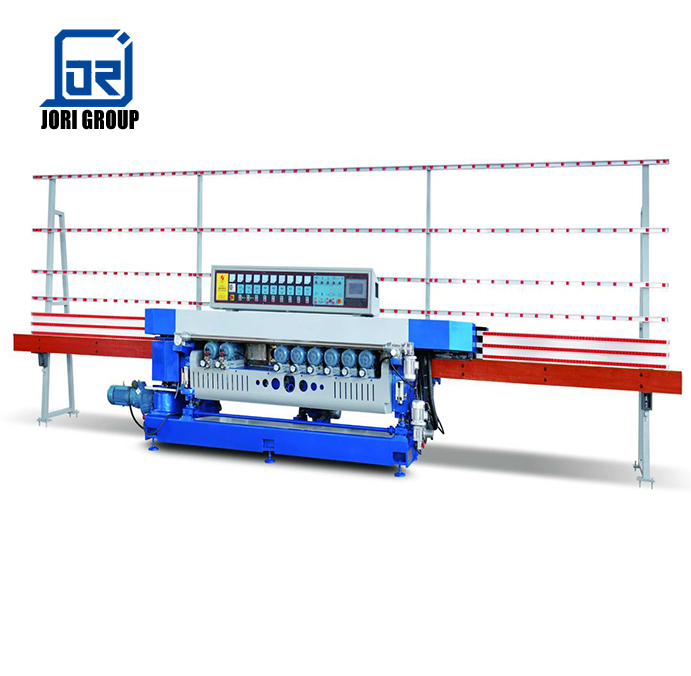

Glass Straight-Line Bevelling Edging Machine JXM261

Chain transmitting, suitable for bevelling and edging various flat glass and mirror, Using up & down structure of front-beam. Suitable for grinding small size mosaics glass Model A is manual controlled while model D is electric controlled with LED displaying thickness, bevel width and angle,working speed. Model P with PLC control system with touch screen human-machine interface.

Processing speed0.6-3.0 m/min
Max. bevel width30mm
Angle range3 - 45 degree
Min. glass size120*120 mm
Glass thickness3-20mm
Spindles8 spindles
SystemPLC with touch screen control
ApplicationArchitectures Furniture Automobile Household Appliance
Dimension8100x1100x2000mm
Product KeywordsHigh quality Glass Straight-Line Bevelling Edging Machine JXM261

Glass Straight-Line Bevelling Edging Machine JXM261
