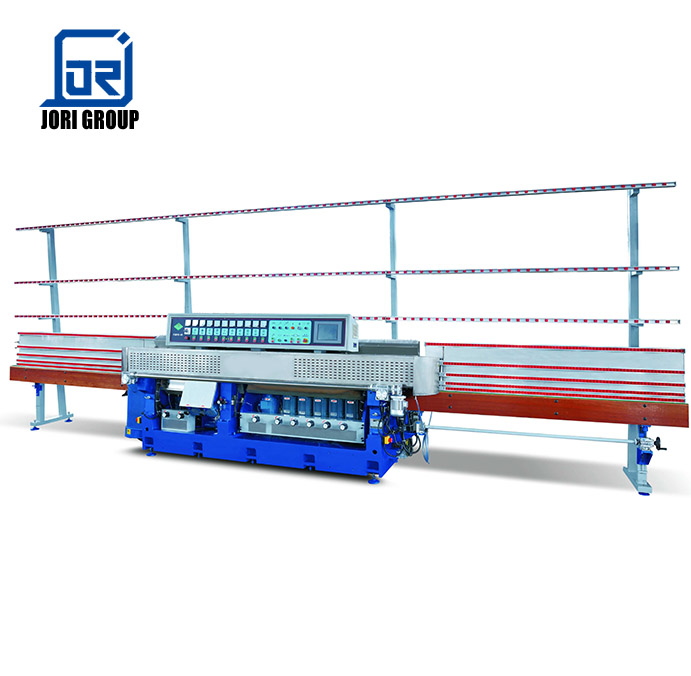

Joint-Link adopts chainless ball bearing structure,PLC control with touch screen human-machine interface,which also displays the glass thickness,cutting-angle and working speed.Suitable to make straight-line edging, Various cutting angle with arris in a single passage.
Working speed | 0.6-3.0 m/min |
---|---|
Max. bevel width | 30mm |
Angle range | 3 - 45 degree |
Min. glass size | 90*90 mm |
Glass thickness | 3-30mm |
Spindles | 10 spindles |
Control system | CNC Control |
Application | Architectures Furniture Household Appliance |
Usage | Straight-line bevel edging and polishing |
Color | Customers' Request |
Product Keywords | Good price JJM10-45 Glass Multistage edging Machine |
