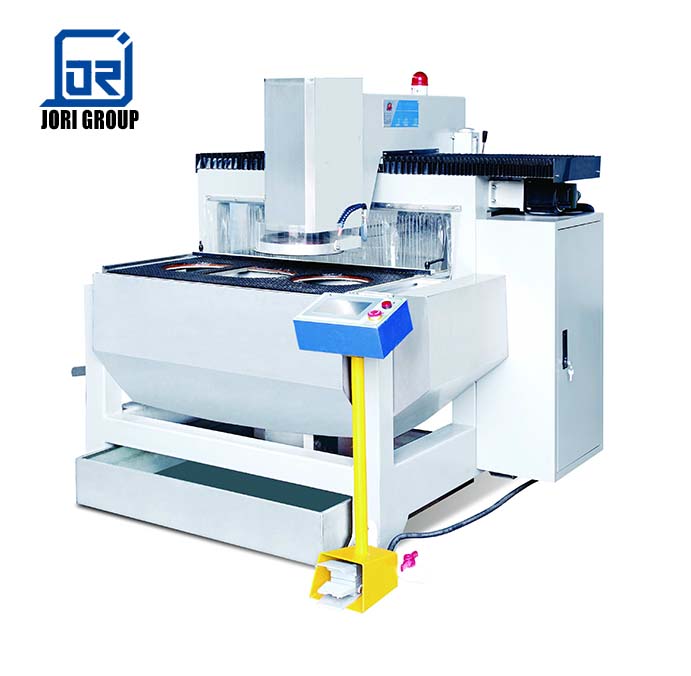

The machine is reasonable structural design, advanced technology, operation and easy adjustment, stable and reliable operation. It is precision and efficiency.
This machine adopts the automatic operation (PLC program control), process are cylinder pressure workpiece, CNC cutting tool (up and down drill can be set the drilling depth and speed), has the one-time in porous and a variety of different diameter processing, chamfer function. In order to adapt to the complex capable of production process, this machine has unique design of position setting. It can be set many positions.
This machine is suitable for intensive, standardized, large quantities of technology require the efficient production of high-porous work piece.
Quality Assurance
1. CN, CE or UL Standard.
2. The warranty is valid within one year from installation.
3. The spare parts due to quality or design problem, we will change it free of charge or in case of necessary, we will send our technician/engineer to the buyer factory for repairing it and related labor cost, we will cover it.
| Diameter of holes | 4 - 250 mm |
|---|---|
| Drilling thickness | 3 - 25 mm |
| Maximum size of workpiece | 1000 x 600 mm |
| Drilling depth | 850 mm |
| Total spindles | 2 pcs |
| Rotation speed of spindles | 900 - 3000 r/min |
| Drilling motor power | 2 - 1.5 kw |
| X-axis | 600 w |
| Y-axis | / |
| z-axis motor power | 2 - 13 n.m |
| Water pump | 1 - 450 w |
| Total power | 5 kw |
| Pressure | 0.5 - 0.6 Mpa |
| Weight | 980 kg |
| Overall size | 1800x1450x1680 mm |
