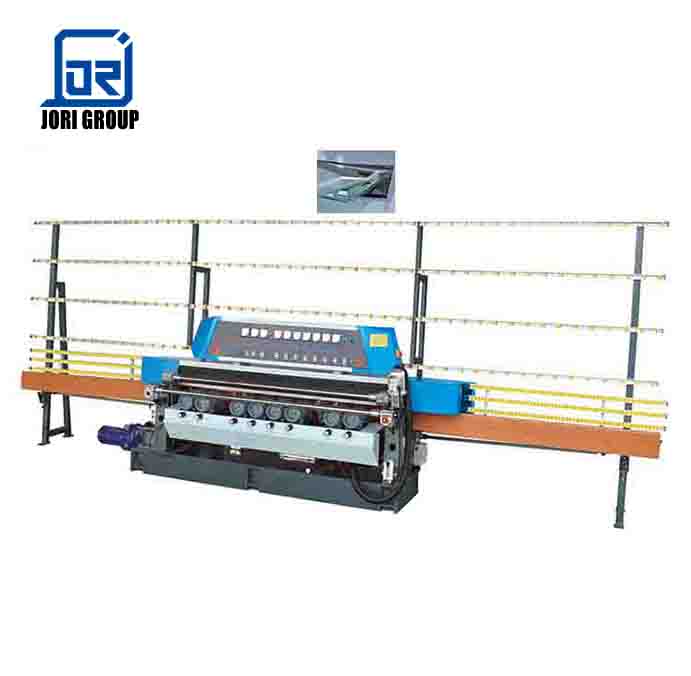

Flat Big Size Glass Edge Buffing Machine JZXM261

This glass beveling machine is a nine-head bevel and bottom grinding machine, it can complete rough grinding and fine grinding in one time, the polished effect is similar to a mirror surface, with accurate ground angles. Control system uses PLC control, automatic, manual conversion. Man-machine interface clearly shows that the glass thickness, width and angle of hypotenuse, and the remaining glass thickness and various parameters, such as processing speeds, transmission speed using variable frequency adjustment.
Chain plates are made of thicker steel plates and the slide gibs are made with a number of special processing techniques with such features as superior abrasion resistance, deformation resistance, and stable operation etc. The motor of the machine has a solid body, high precision, low-power consumption, suitable for beveling and milling processing of large quantities of glass parts.

Processing speed0.7-3.5m/min
Min. glass size100*100 mm
Glass thickness3-19mm
Spindles9 spindles
SystemSemi-automatic
ApplicationArchitectures Furniture Household Appliance
Dimension6800*1200*2500mm
Product KeywordsHigh quality grade glass beveling machine From China supplier JZXM261
