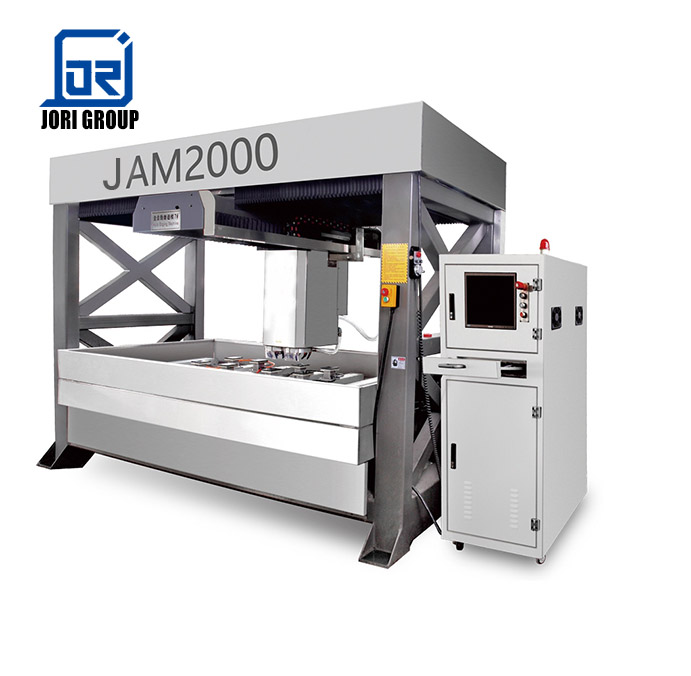

This machine is a machining center that can realize full-automatic processing by processing CAD drawings. It is widely used in edging and special-shaped processing of flat glass: it can be used for edge grinding, chamfering, polishing and grinding of inner holes. The debugging operation is simple, the labor intensity is low, and the precision can be controlled within 0.1mm.
| Maximum size of workpiece | 1700 x 800 mm |
|---|---|
| Drilling thickness | 3 - 15 mm |
| Total number of grinding axes | 2 Pcs |
| Grinding axes rotation speed | 300 - 18000 r/min |
| Grinding axes motor power | 2.2 kw / 5.5 kw |
| X-axis feed-in motor power | 2 kw |
| Y-axis feed-in motor power | 2 kw |
| Z-axis feed-in motor power | 2 - 1 Kw |
| Water pump | 750 w |
| Total power | 18.5 kw |
| Table height | 890 mm |
| Electric box overall size | 1000 x 700 x 1800 mm |
| Weight | 2800 kg |
| Overall size | 3600x700x1800 mm |
| Product key words | CNC Full Automatic Glass Edging Machine JAM2000 |
